1 : 20 DETAIL
1 : 20 /detail section
1.
2.
3.

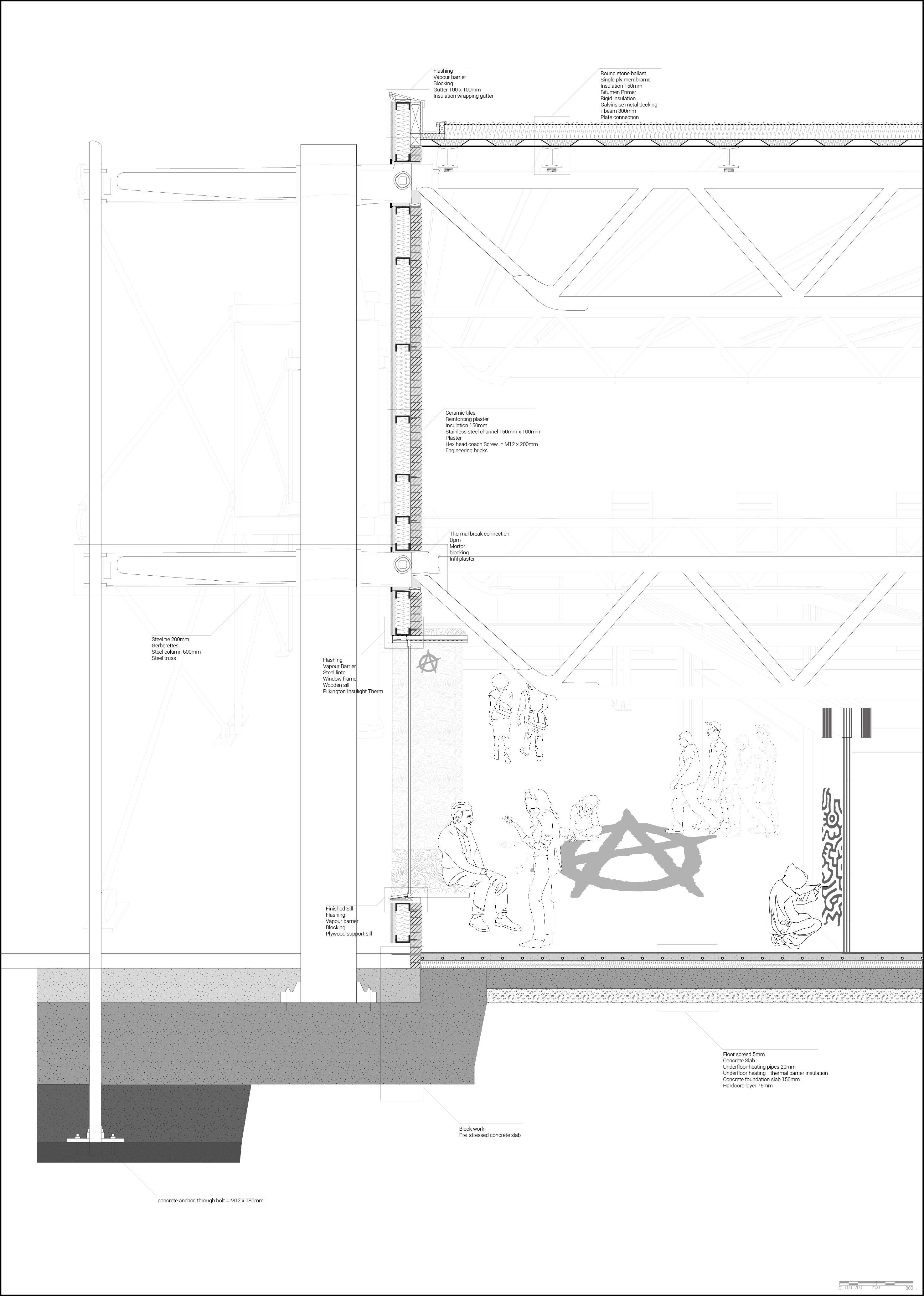

An isolated section through the Anarchist Free School which highlights the material choices and structure.
Below shows the configuration of intergral portions of the building -
1.
ROOF STRUCTURE
Flashing, block work, vapour barrier, aluminum gutter 100mm, insulation wrapping gutter, ballast, insulation 150mm, Bitumen Primer, acoustic infil panels, galvinsise metal decking
2.
WALL STRUCTURE
Ceramic tiles (glued to insulation), plaster 25mm, insulation 150mm, reinforcing plaster 5mm, hex head coach Screw = M12 x 200mm, engineering brick
3.
FLOOR STRUCTURE
Floor screed 5mm, concrete slab 75mm
- underfloor heating pipes 20mm,
underfloor heating - thermal barrier insulation, concrete foundation slab 150mm, hardcore layer 75mm
